Camera Flange 2.0 Version for myCobot/myPalletizer/mechArm/myBuddy
Quantity:

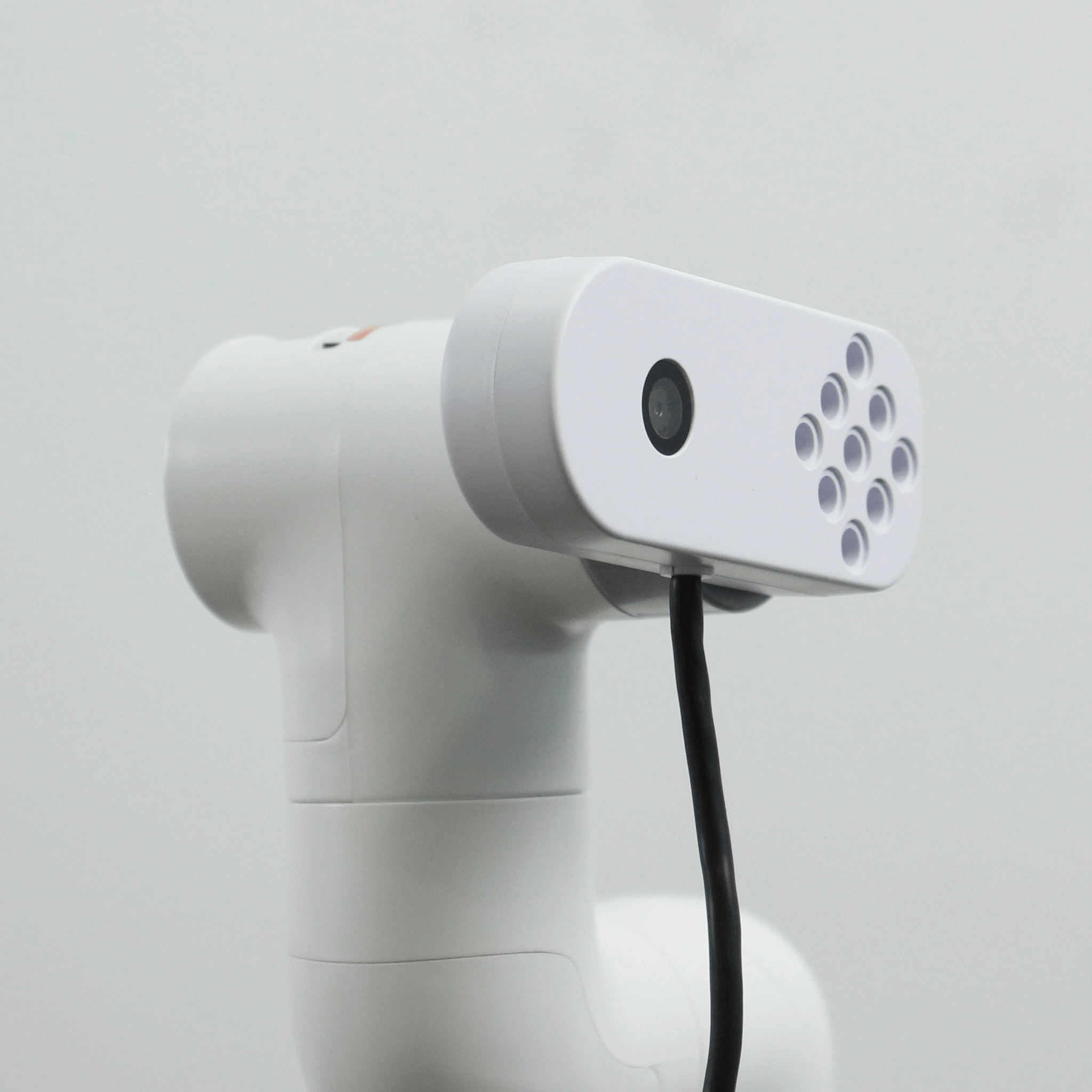

Camera Flange is the base for collaborative robots from Elephant Robotics. Camera Flange helps you complete more creative robots.
Used for myCobot 280 M5Stack¡¢ myCobot 280 Pi¡¢MyCobot 280 For Arduino¡¢myCobot 280 Jetson Nano¡¢myPalletizer 260 M5Stack¡¢ myPalletizer 260 Pi¡¢mechArm 270 M5¡¢mechArm 270 Pi¡¢myBuddy 280.
Features

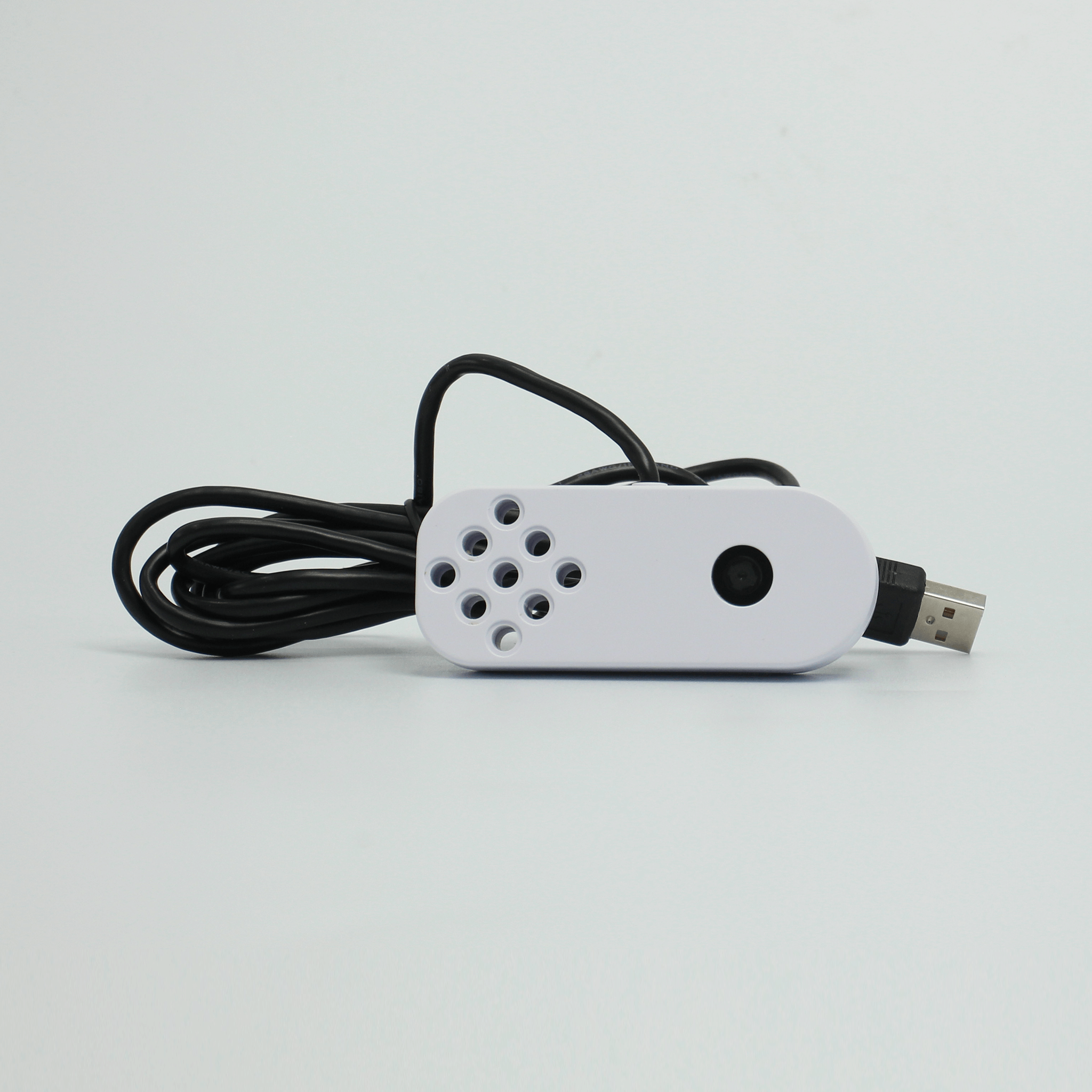

Ultra Small Micro USB Camera
- Adopt color wide-angle high-definition 720P; Support MJPEand YUV format; With standard USB2.0 high-speed interface.
Direct Plug-in Drive-free Design
- It installs in minutes on the Robot arm. Plug-and-play. It is very convenient and fast.
Does Not Take up Space
- The compact design and small volume let you don't worry about taking up too much space.
Lightweight and Easy to Carry
- Lightweight and Easy to Carry
Multiple Uses
- Wide range of uses, suitable for face recognition, smart screen, smart express delivery, automatic vending, scan code, access control, medical equipment, and so on.
Specifications
| USB non-distortion lens | |
|---|---|
| Size | 18x18x20mm |
| Maximum pixels | 1 million 1280X720 |
| Support image formats | YUV, MJPEG |
| Pixel size | 3.4umX3.4um |
| Maximum frame rate | 1280x720 @ 25fps |
| USB protocol | USB2.0 HS/FS |
| Supported resolution | 1280X720, 640X480, 320X240 |
| Power supply | DC5V 90mA |
| Lens focal length | Standard 1.7mm |
| Field of view angle | ¡Ö60¡ã |
| Supported systems | Win7/8/10, Linux, MAC |
| End flange | |
|---|---|
| Material | ABS injection |
| Process | Painting |
| Size | 80x40x20mm |
| Weight | 60g |
